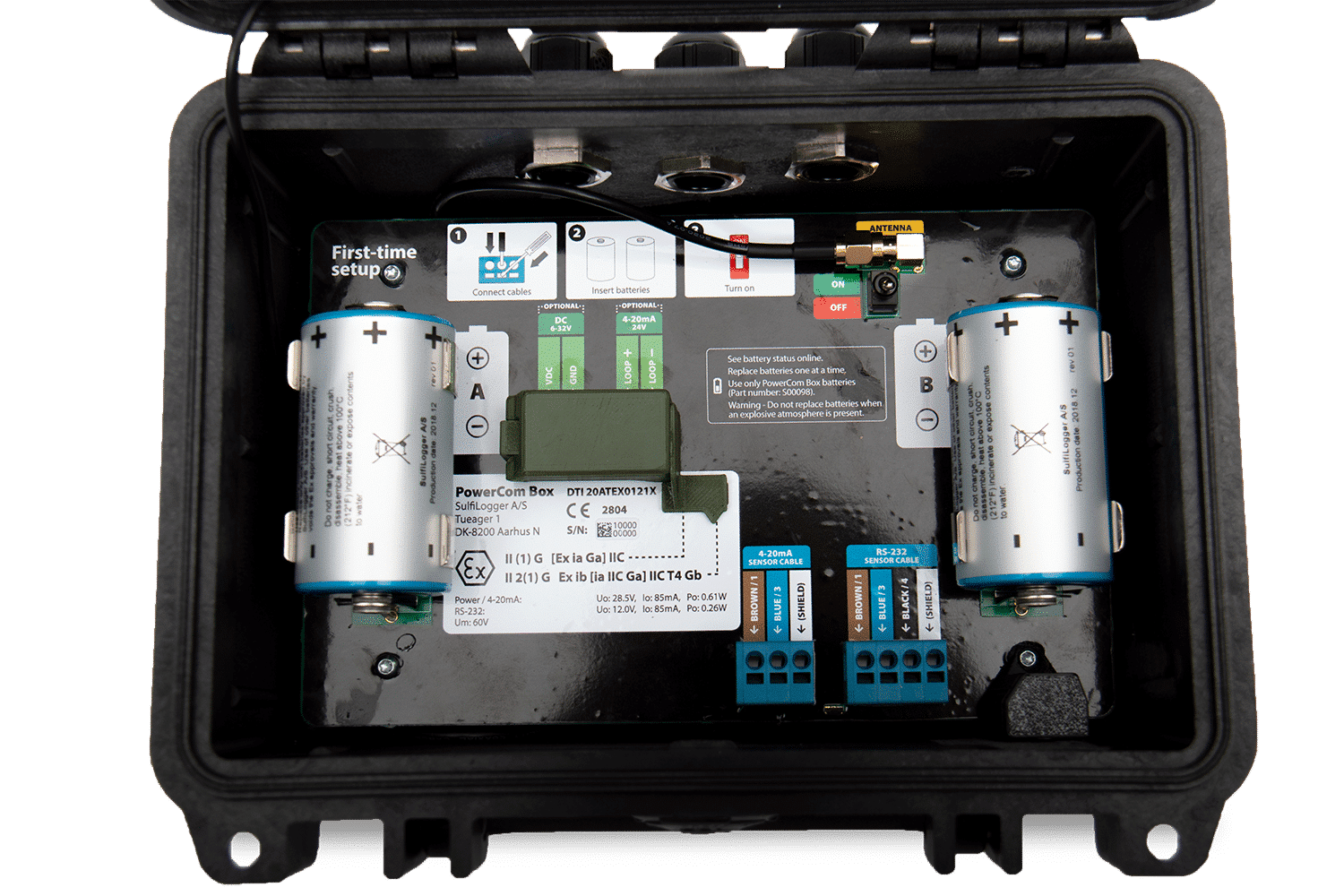

PowerCom Box

Cloud data and battery-powered sensor operation.

The PowerCom Box is a smart dual-purpose accessory that transmits SulfiLoggerTM H2S sensor data to an online cloud service via cellular connectivity while also powering the SulfiLoggerTM sensor using disposable batteries or DC power.

  • Cloud data on any device

  • Battery-powered sensor operation

Features

Cloud data on any device

Get access to cloud data on any device and at any time.

In SulfiLogger™ WebData you can:

  • Get a color-coded H2S overview of all sites

  • View interactive graphs of one or multiple sites

  • Check the status of all devices

  • Export CSV data to Excel for further analysis

  • Integrate data into other systems (REST API)

Battery-powered sensor operation

Measure in remote areas with no power connectivity.

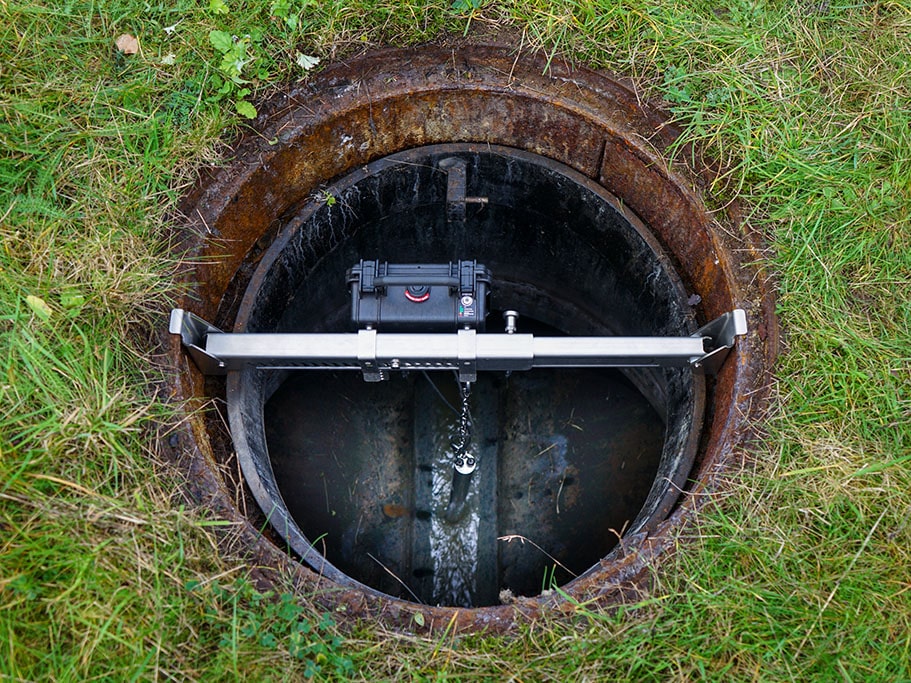

SulfiLogger sensor in manhole

The PowerCom Box transforms the SulfiLoggerTM sensor into a fully self-contained sensor system ready to be deployed virtually anywhere in the sewer network – even in areas with no immediate SCADA connectivity. The PowerCom Box powers the sensor using either disposable batteries or a DC power input when used in areas with grid access.

In addition to transmitting cloud data and powering the sensor, the PowerCom Box also acts as a gateway for easy SCADA/PLC integration using 4-20mA connectivity.

PowerCom Box specifications

PowerCom Box A1 (Europe & Rest of the World)
Dimensions 215 mm x 179 mm x 107 mm
(8.5 in x 7.1 in x 4.2 in)
Weight 1.00 kg (2.18 lb)
Material Polypropylene
IP rating IP67
Operating/storage temperature -20 °C to 40 °C (-4 °F to 104 °F)
Operating/storage humidity 0 to 100 % humidity
Certifications – radio FCC, ISED, EU RED
Certifications – safety CE (ATEX), UKCA (UKEX)

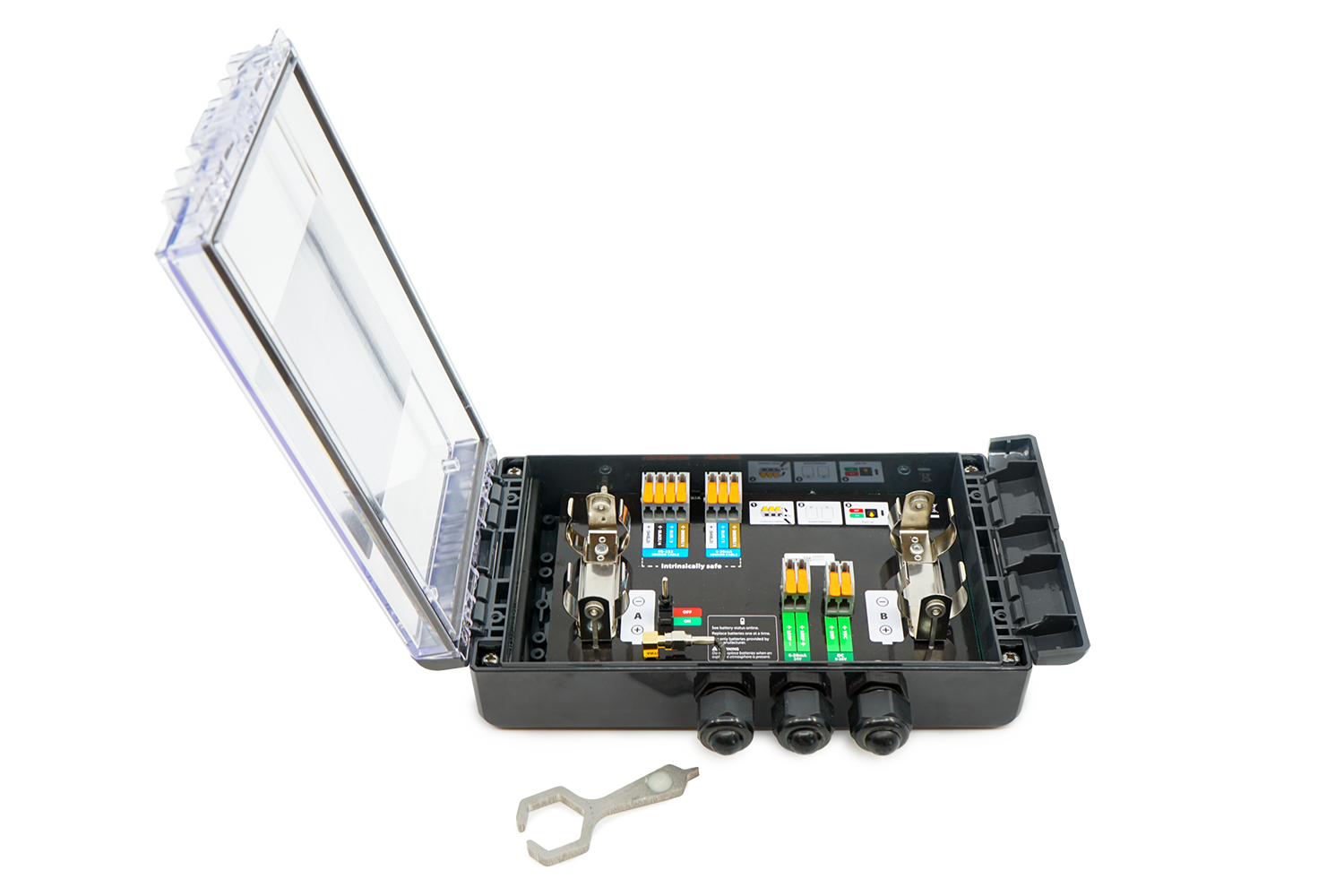

PowerCom Box B1 (US & CA)
Dimensions 230 mm x 155 mm x 63 mm
(9.0 in x 6.1 in x 2.5 in)
Weight 0.80 kg (1.76 lb)
Material Polycarbonate
IP rating IP64/IP67
Operating/storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operating/storage humidity 0 to 100 % humidity
Certifications – radio FCC, ISED
Certifications – safety cETLus safety listed (5022889)
Technical specifications (A1 & B1)
Power input One of these options:
– SulfiLogger batteries model S00098 (non-rechargeable)
– DC power supply (9-28 V, min. 1 A)
Battery life 3 months (estimated)
Data output Cloud data
4-20 mA (24 V) for SCADA/PLC
Connectivity 2G/3G/4G* (embedded SIM)
Antenna options Internal (included)
External (optional)
Interface Status LED
On-off switch
Mounting accessories Crossbeam clamps
Wall mount brackets
DIN-rail brackets

* Depending on the country.

Cloud data specifications (A1 & B1)
Cloud data service SulfiLoggerTM WebData
Data types H2S (mg/L or ppm)
Temperature
Time resolution 1 minute
Transmission frequency Every 6th hour
Compatible devices Computer, Tablet, Smartphone
Compatible browsers Chrome, Edge, Safari, Firefox
Data export Data export to Excel (CSV file)
System integration option Standardized REST API
Other specifications (A1 & B1)
Warranty 1 year**
Data subscription Available on a per-year basis
Price

** When used in accordance with the Installation Manual.
