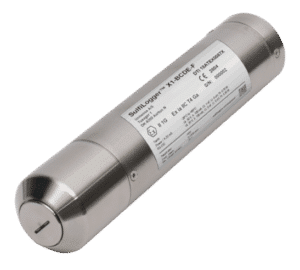

SulfiLoggerTM H2S sensors
| SulfiLoggerTM | S1-1010 | S1-1020 X1-1020 (ATEX) |
S1-1030 X1-1030 (ATEX) |
S1-1110 X1-1110 (ATEX) |
|---|---|---|---|---|
 |
 |
 |
|
|
| Application | Autonomous and remote site measurements | Online monitoring | Online monitoring | Online monitoring |
| Environment | Wastewater | Wastewater | Pressurized wastewater | Pressurized gases |
| Measurement range | 0-5 mg/L | 0-5 mg/L | 0-5 mg/L | 0-1000 ppm |
| Max pressure | 10m | 10m | 3 barg 44 psi |
3 barg 140 psi |

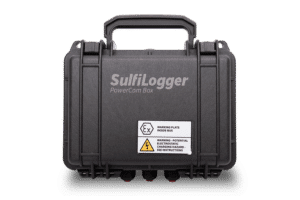

| Input power | Battery in PowerCom box | 20 to 30 V | 20 to 30 V | 20 to 30 V |
| Output data | Logged data from PowerCom box | RS-232 or 4-20 mA | RS-232 or 4-20 mA | RS-232 or 4-20 mA |
| Mounting | Free hanging Wall mounted |
Free hanging Wall mounted |
In-line Flow cell |
In-line Flow cell |
SulfiLoggerTM H2S sensors
| SulfiLoggerTM S1-1010 | |
|---|---|
|
|
| Application | Autonomous and remote site measurements |
| Environment | Wastewater |
| Measurement range | 0-5 mg/L |
| Max pressure | 10m |
| Input power | Battery in PowerCom box |
| Output data | Logged data from PowerCom box |
| Mounting | Free hanging Wall mounted |
| SulfiLoggerTM S1-1020 SulfiLoggerTM X1-1020 (ATEX) |
|
|---|---|
|
|
| Application | Online monitoring |
| Environment | Wastewater |
| Measurement range | 0-5 mg/L |
| Max pressure | 10m |
| Input power | 20 to 30 V |
| Output data | RS-232 or 4-20 mA |
| Mounting | Free hanging Wall mounted |
| SulfiLoggerTM S1-1030 SulfiLoggerTM X1-1030 (ATEX) |
|
|---|---|
|
|
| Application | Online monitoring |
| Environment | Pressurized wastewater |
| Measurement range | 0-5 mg/L |
| Max pressure | 3 barg 44 psi |
| Input power | 20 to 30 V |
| Output data | RS-232 or 4-20 mA |
| Mounting | In-line Flow cell |
| SulfiLoggerTM S1-1110 SulfiLoggerTM X1-1110 (ATEX) |
|
|---|---|
|
|
| Application | Online monitoring |
| Environment | Pressurized gases |
| Measurement range | 0-1000 ppm |
| Max pressure | 3 barg 140 psi |
| Input power | 20 to 30 V |
| Output data | RS-232 or 4-20 mA |
| Mounting | In-line Flow cell |
Technical specifications for all sensors:
| Accuracy | +/- 5% of full range |
| Detection limit | 1% of full range |
| Response time | <25 seconds |
| Operating humidity range | 0-100% |
| Design temperature range | -20°C to +60°C -4°F to +140°F |
| Operating temperature range | 0°C to +40°C 32°F to +104°F |
Mechanical specifications for all sensors:
| Length | 240 mm |
| Diameter | Ø48.3mm / 1 ½” pipe |
| Weight | 0.85 kgs |
| Material | Stainless Steel EN 1.4404 (316L) |
| Warranty | 3 months |
Conformity and certificates:
S1-series: CE
X1-series: CE, ATEX
