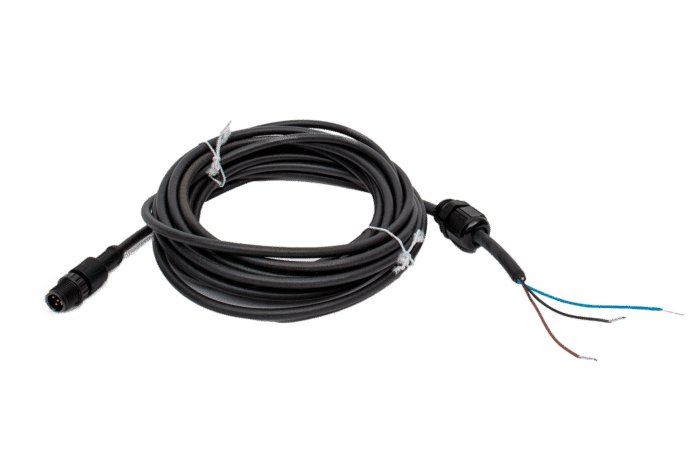

RS-232 cable
The RS-232 cable delivers a digital sensor signal.
This cable is required (in addition to the power/4-20mA cable) to use the PowerCom Box.
Technical specifications
Cable lengths | 5 metre (16.4 ft) 10 metre (32.8 ft) 30 metre (98.4 ft) |
Cable weights | 0.15 kg (0.33 lb) – for 5 metre cables 0.35 kg (0.77 lb) – for 10 metre cables 1.05 kg (2.31 lb) – for 30 metre cables |
Additional specifications
Encoding | M12 |
Cable diameter | 5 mm |
Cross-sectional area | 5 * 0.34 mm² / AWG 22 |
Conductor resistance | 60 Ω/km (20 °C) |
Rated voltage | 250 V |
Rated impulse voltage | 60 V |
Rated current (40 °C) | 4 A (3 A UL) |
Sheath material | PUR |
IP protection degree | IP68 |
EMC compliance | Unshielded |
