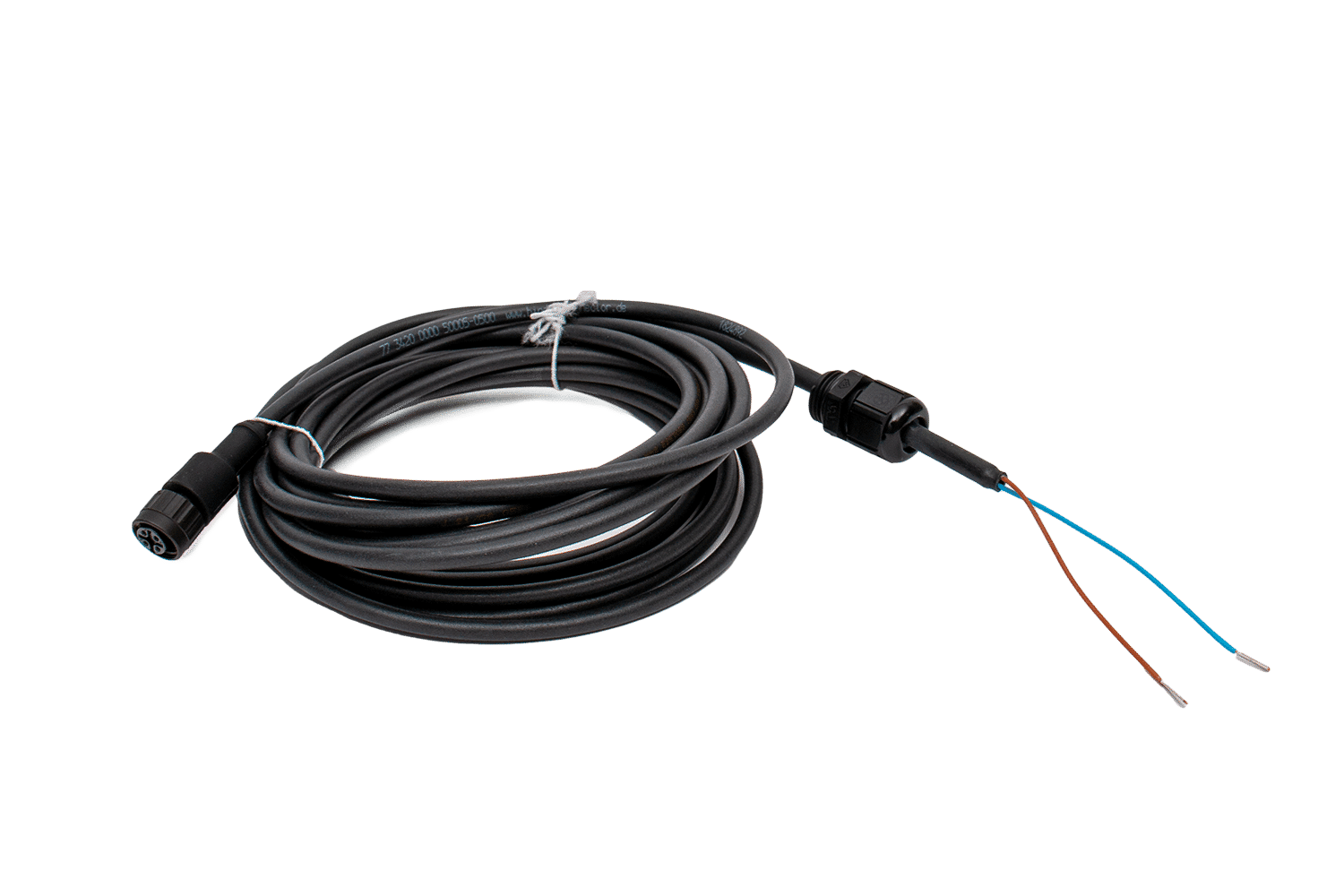

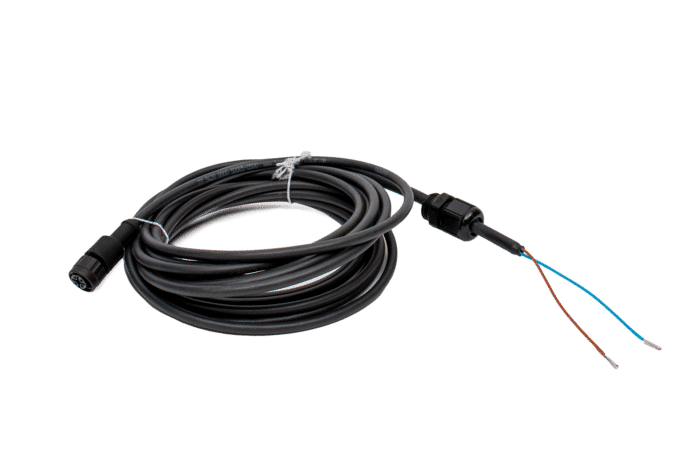

Power/4-20mA cable

Power/4-20mA cable

Click to see prices

The power/4-20mA cable powers the SulfiLogger™ sensor and delivers a 4-20mA analogue sensor signal to SCADA/PLC systems.

This cable is required to use the SulfiLogger™ sensor regardless of your choice in data output.

Technical specifications

Cable lengths 5 metre (16.4 ft)
10 metre (32.8 ft)
30 metre (98.4 ft)
Cable weights 0.15 kg (0.33 lb) – for 5 metre cables
0.35 kg (0.77 lb) – for 10 metre cables
1.05 kg (2.31 lb) – for 30 metre cables

Additional specifications



Encoding M12
Cable diameter 5 mm
Cross-sectional area 5 * 0.34 mm² / AWG 22
Conductor resistance 60 Ω/km (20 °C)
Rated voltage 250 V
Rated impulse voltage 60 V
Rated current (40 °C) 4 A (3 A UL)
Sheath material PUR
IP protection degree IP68
EMC compliance Unshielded
