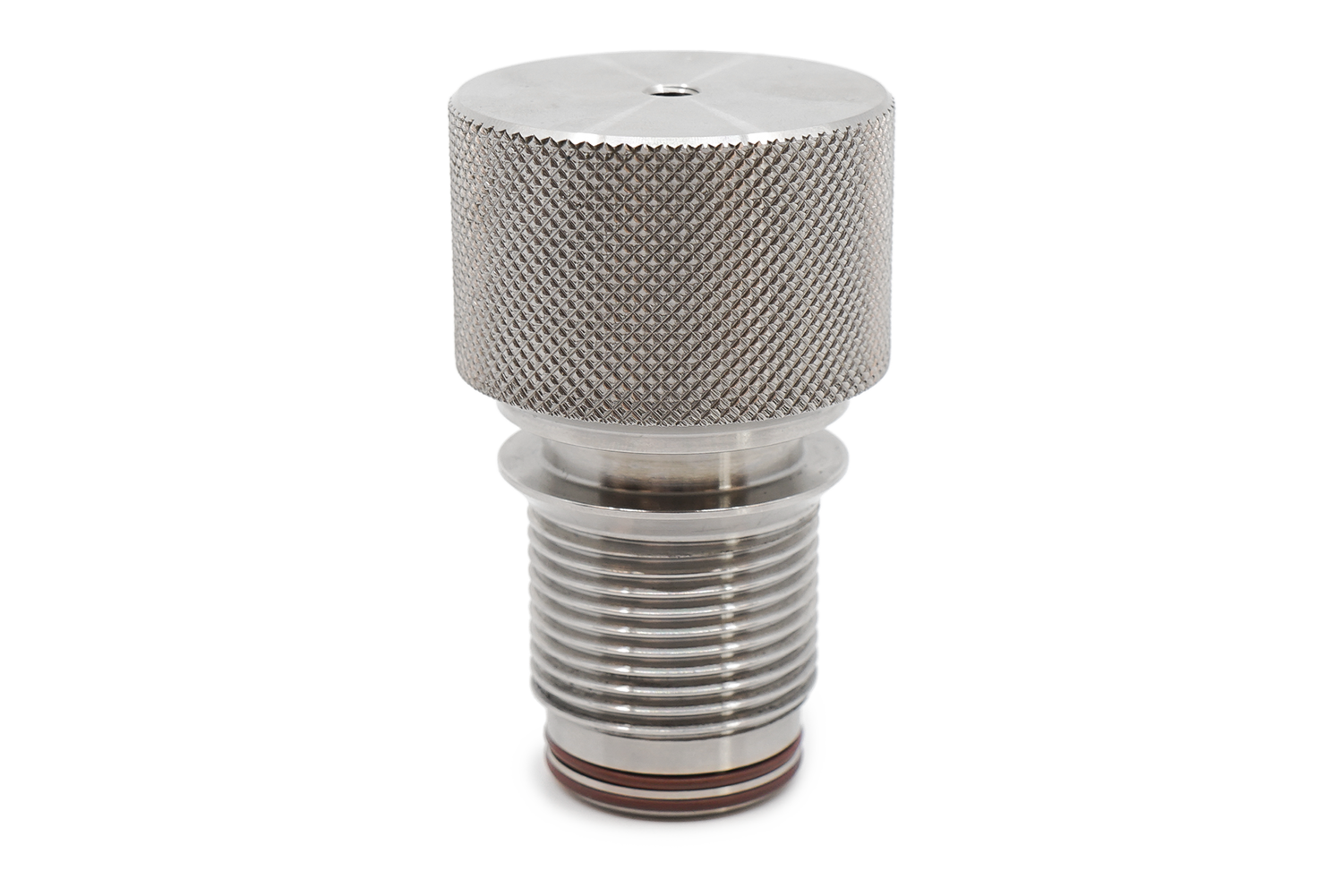

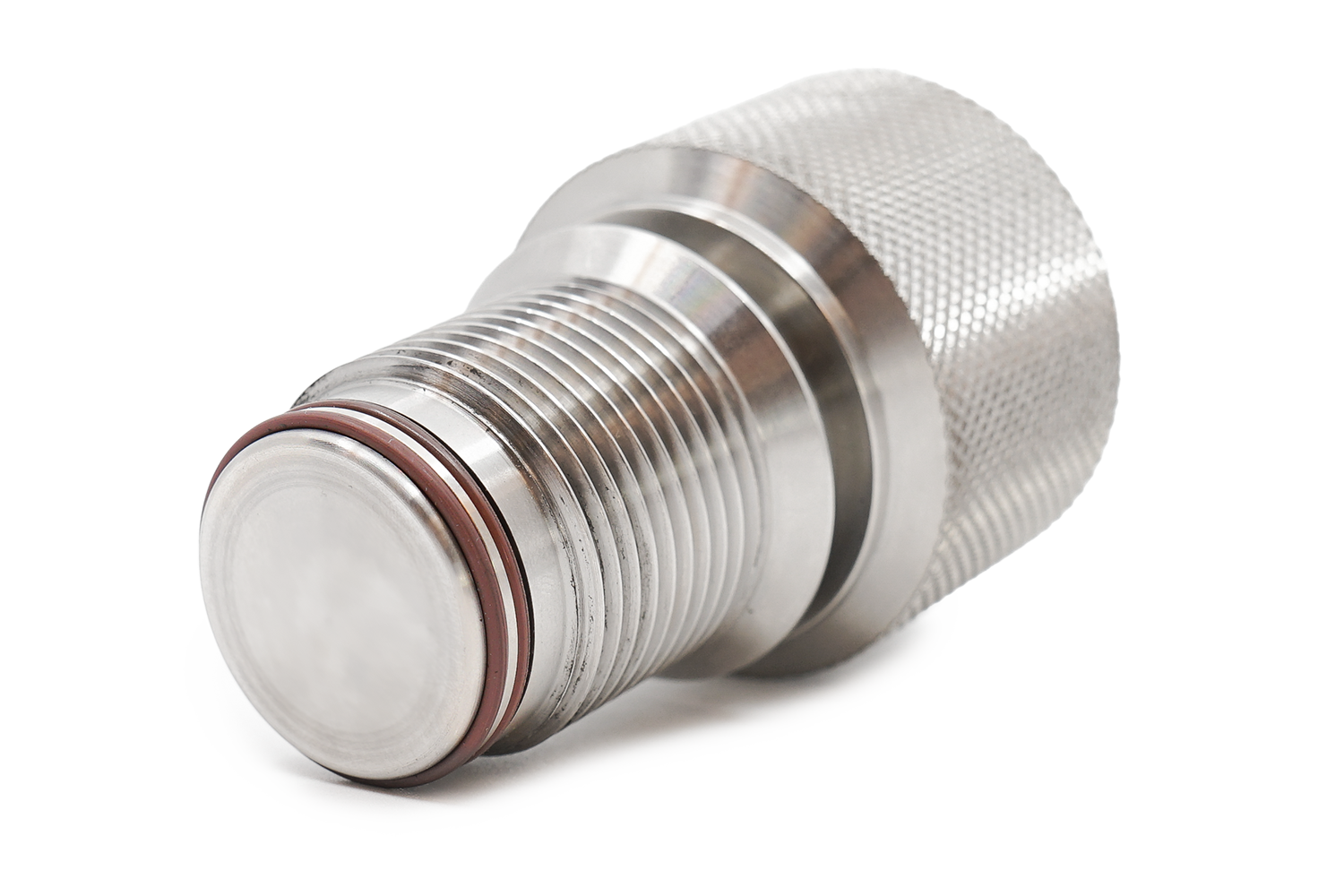

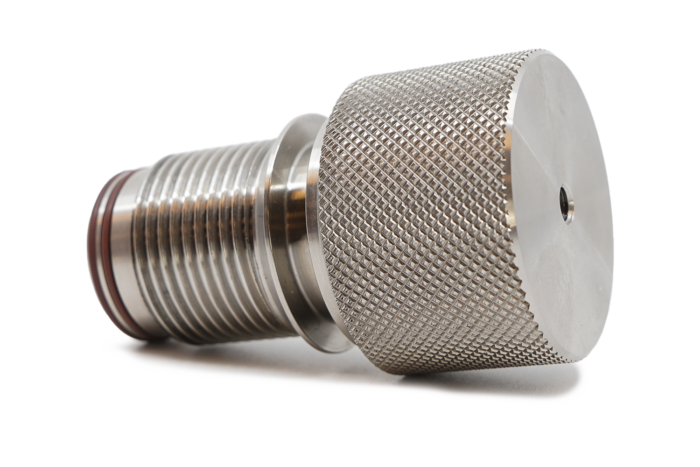

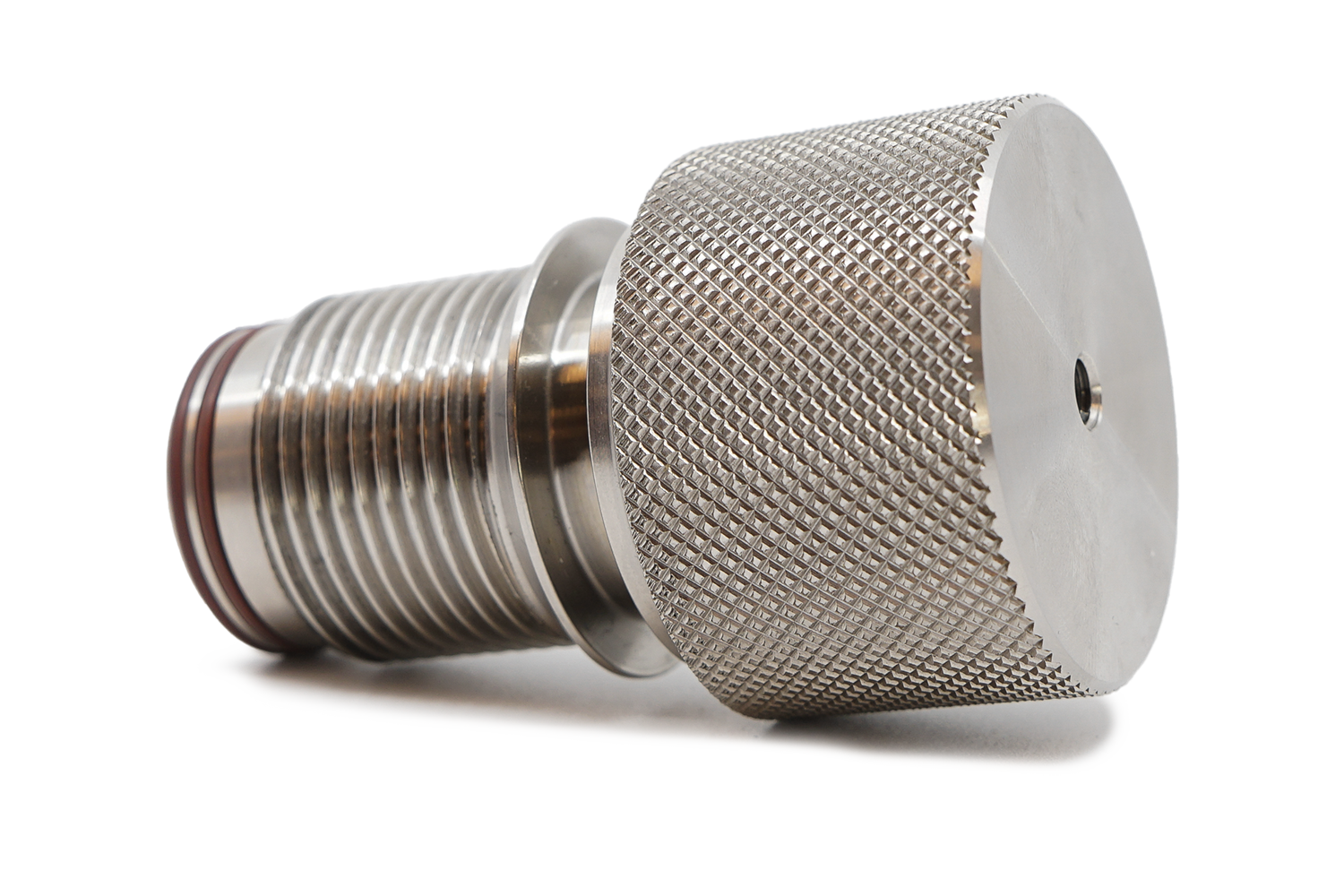

Inline plug

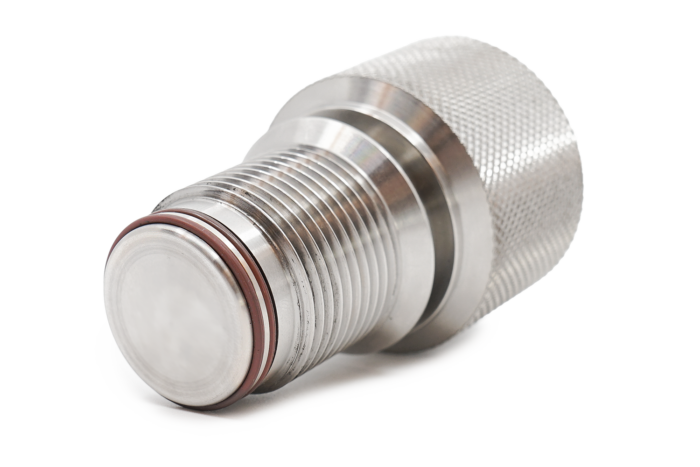

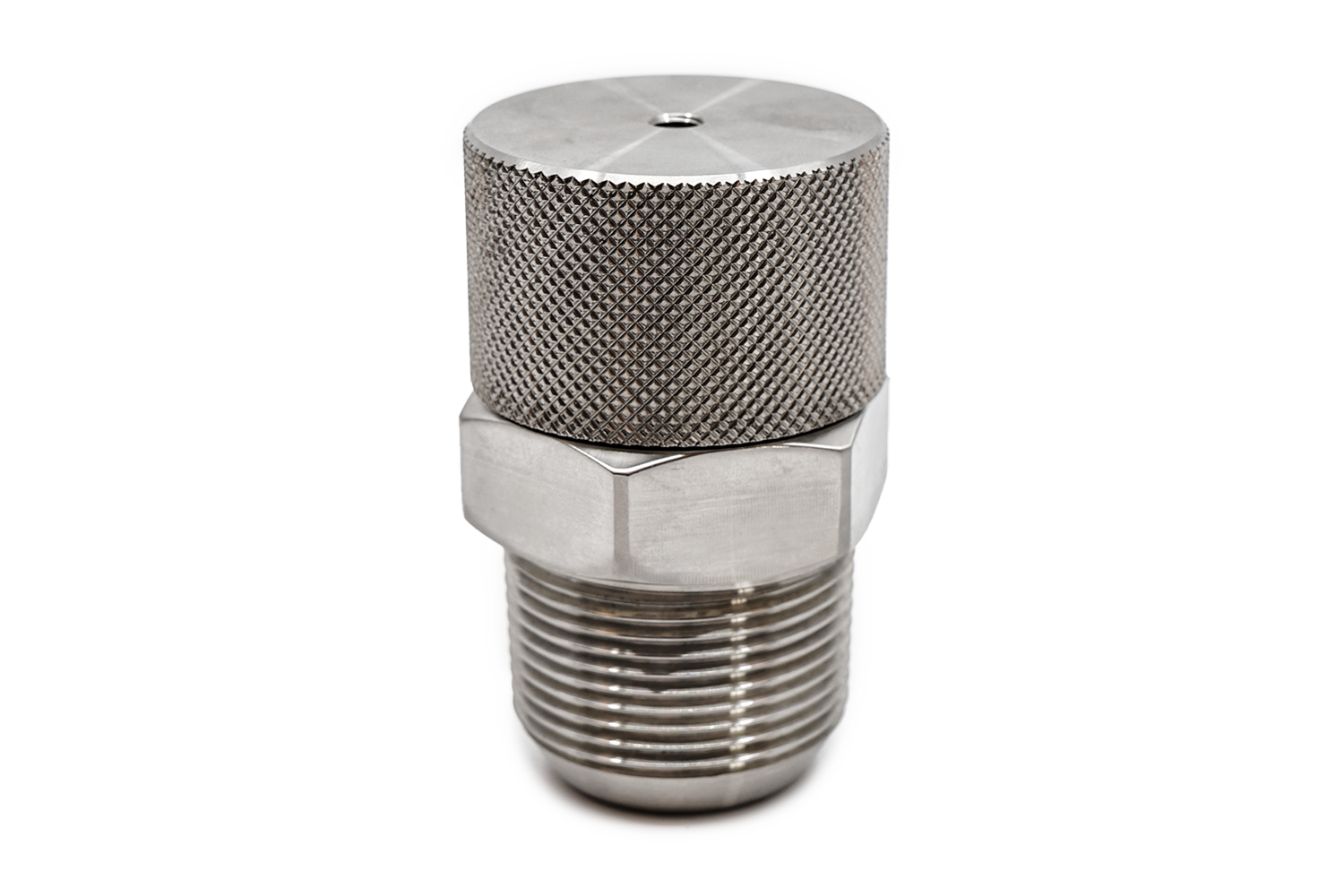

Inline plug with threads for quick sealing of the gas flow cell and the adapter for in-pipe mounting (with/without T-piece).

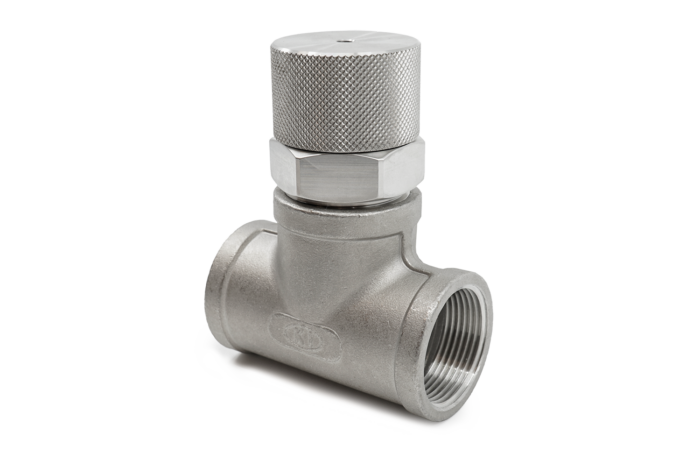

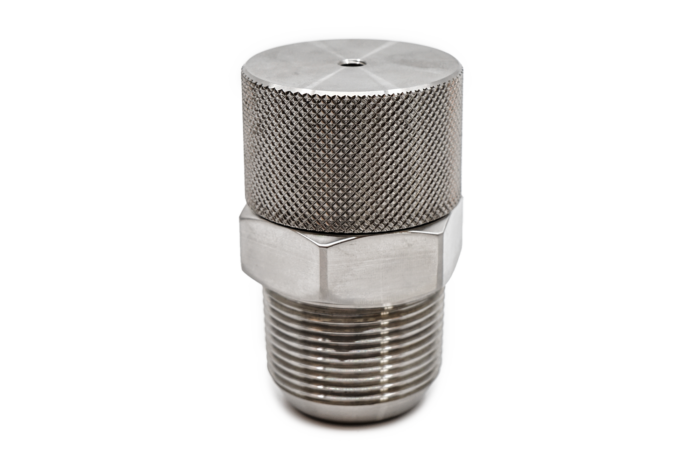

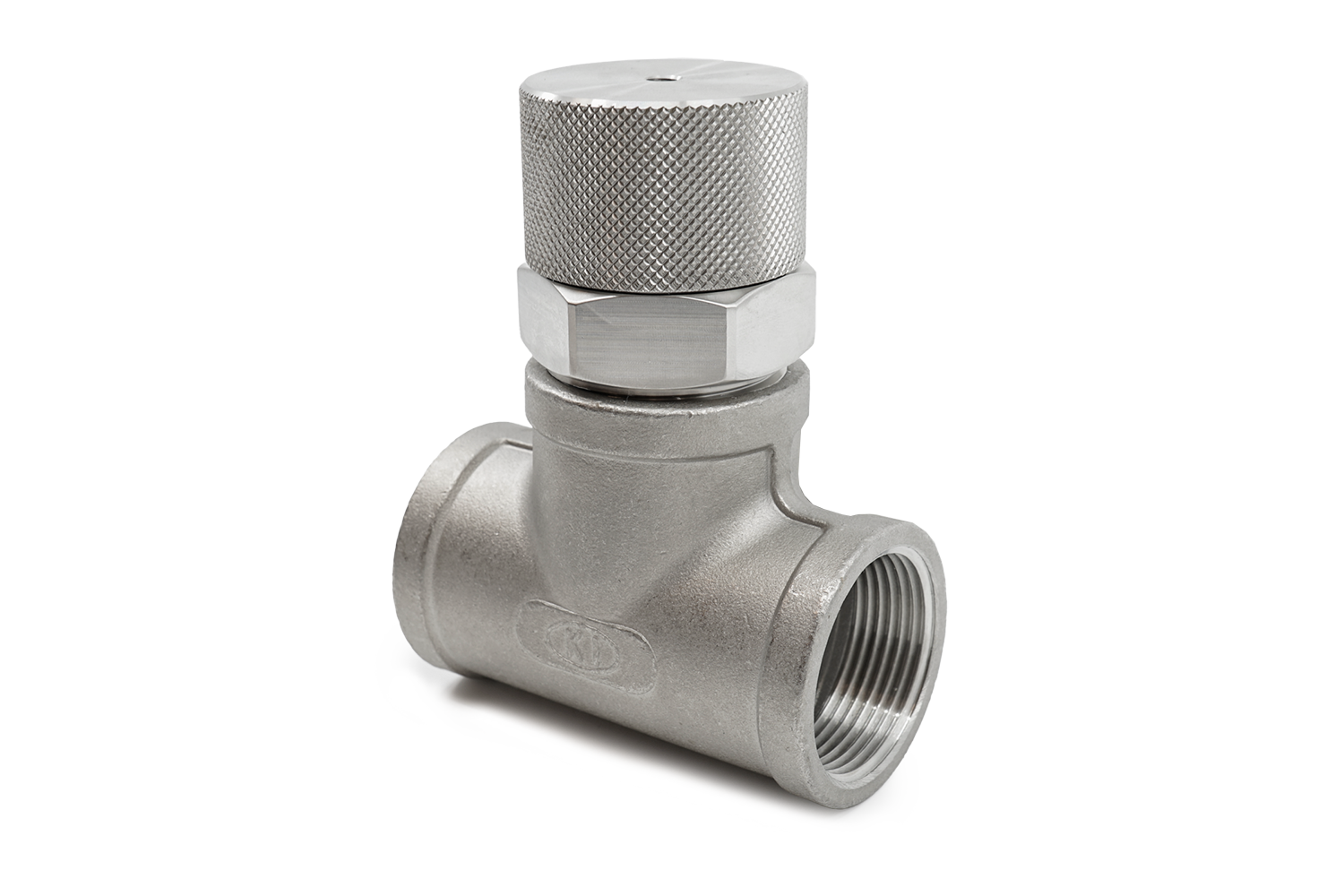

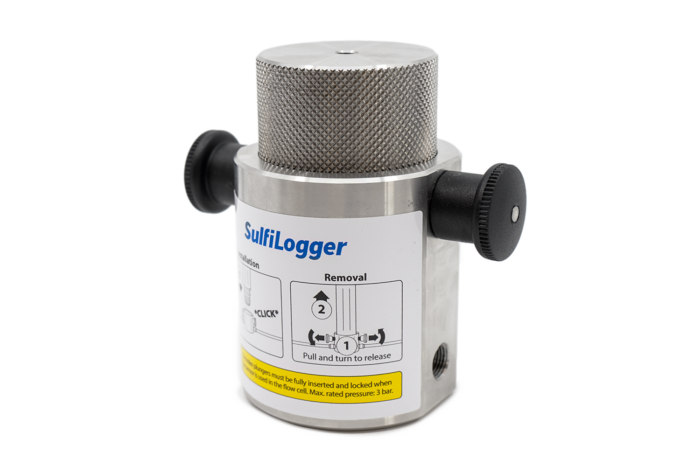

The gas flow cell and the adapter for in-pipe mounting are sold as separate items, and are only shown in the product gallery to illustrate the compatability between the inline plug and these items.
Technical specifications
| Compatible products | Gas flow cell Adapter for in-pipe mounting |
| Weight | 0.80 kg (1.8 lb) |
| Max rated fluid pressure | 3 bar |
| Max. diameter | Ø48.3 mm (1.9 in) |
| Height | 80 mm (3.2 in) |
| Material | Stainless steel EN 1.4404 (316L) |
| O-ring seals | Ø26.5×1.5 mm – Viton, shore A |
