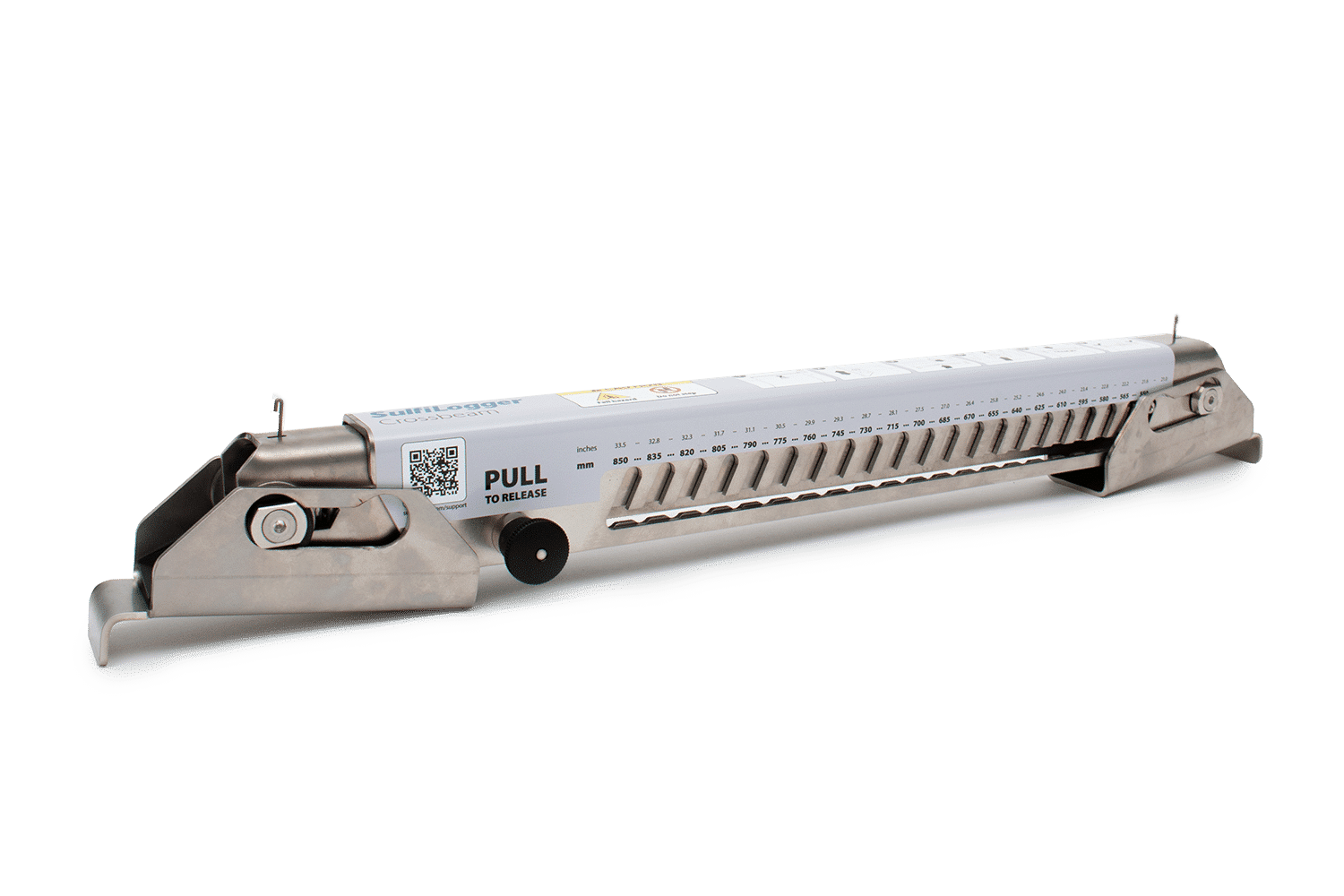

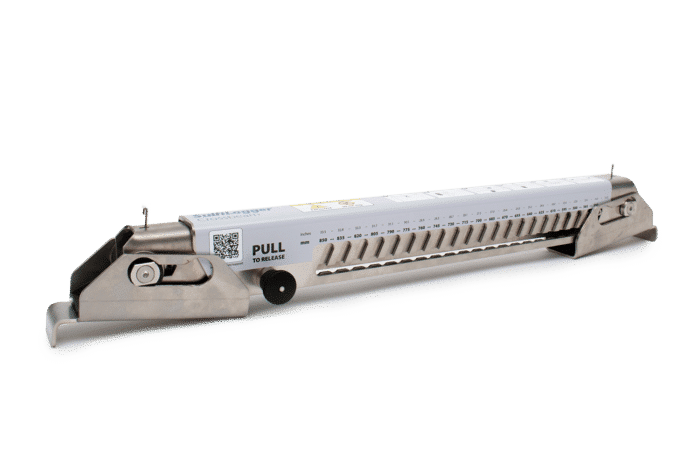

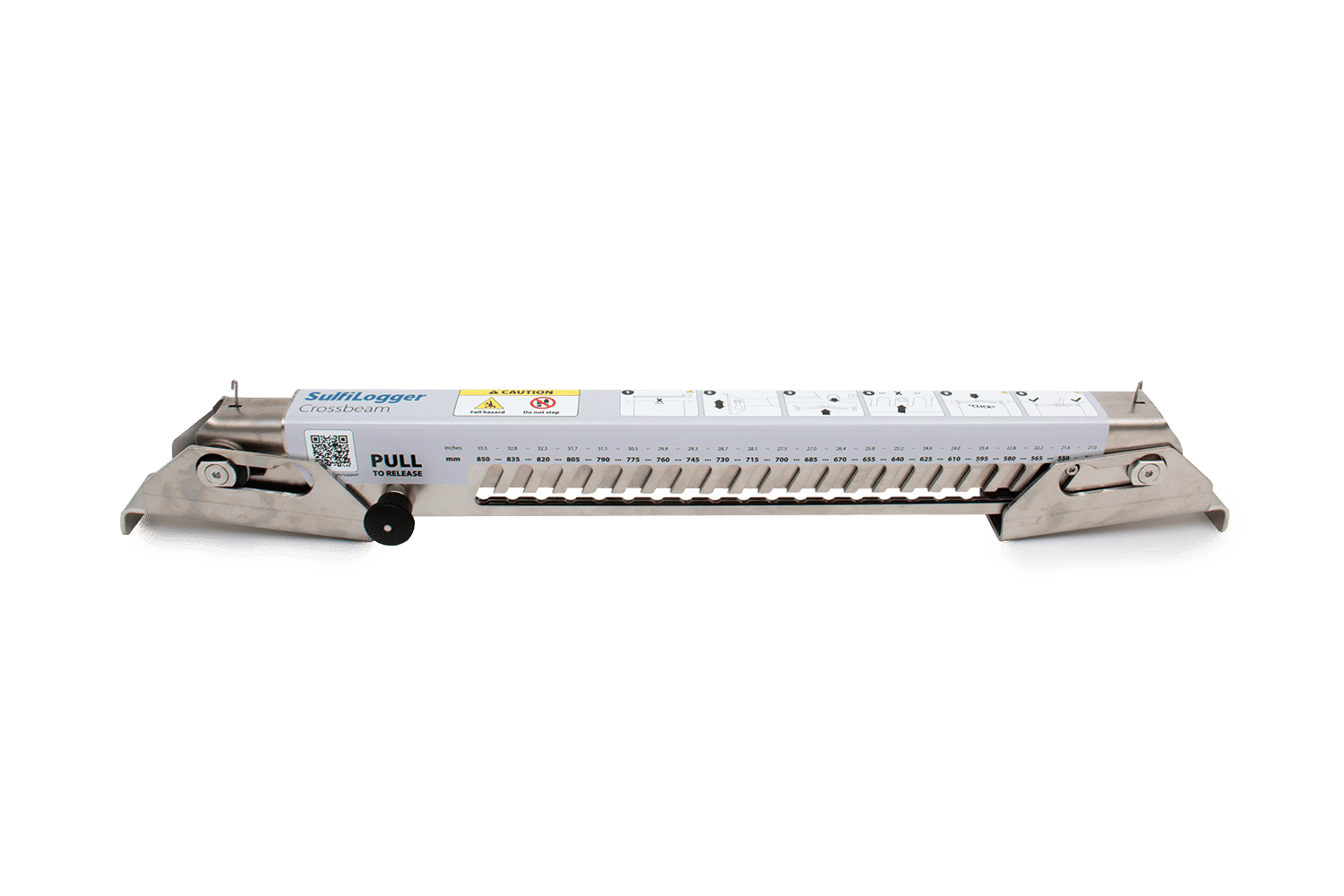

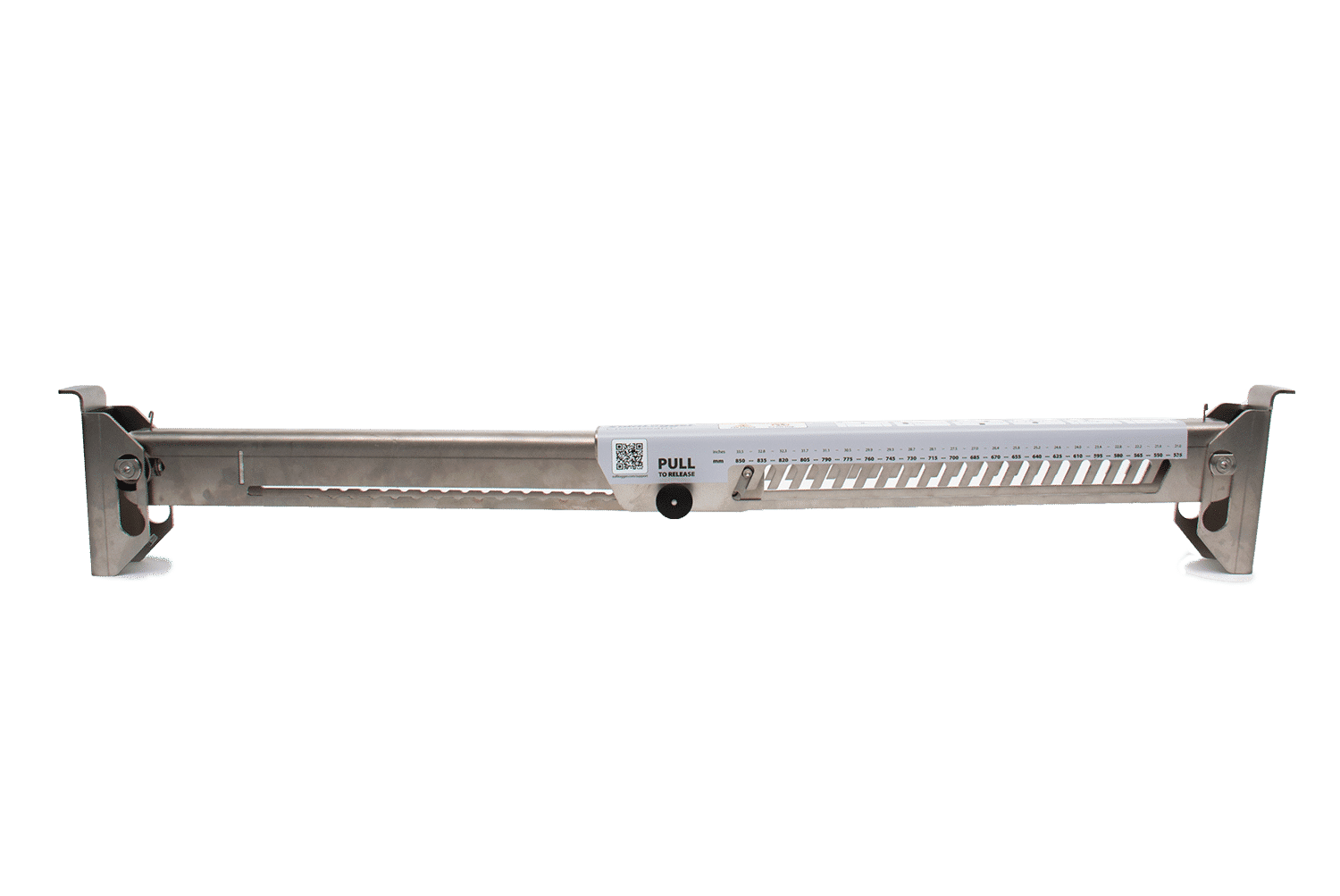

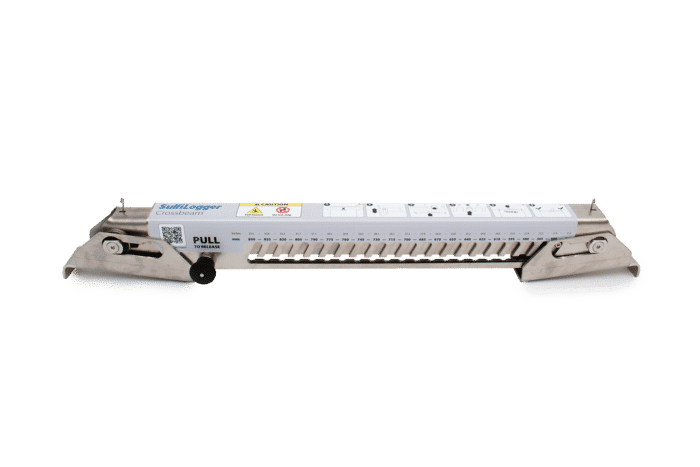

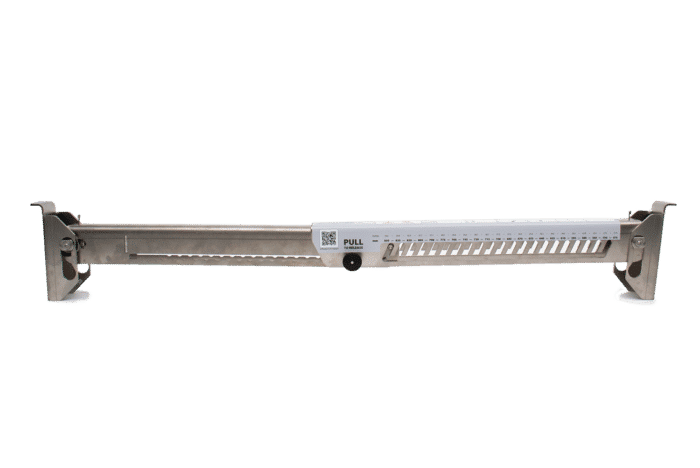

Crossbeam (with clamps)

Click to see prices

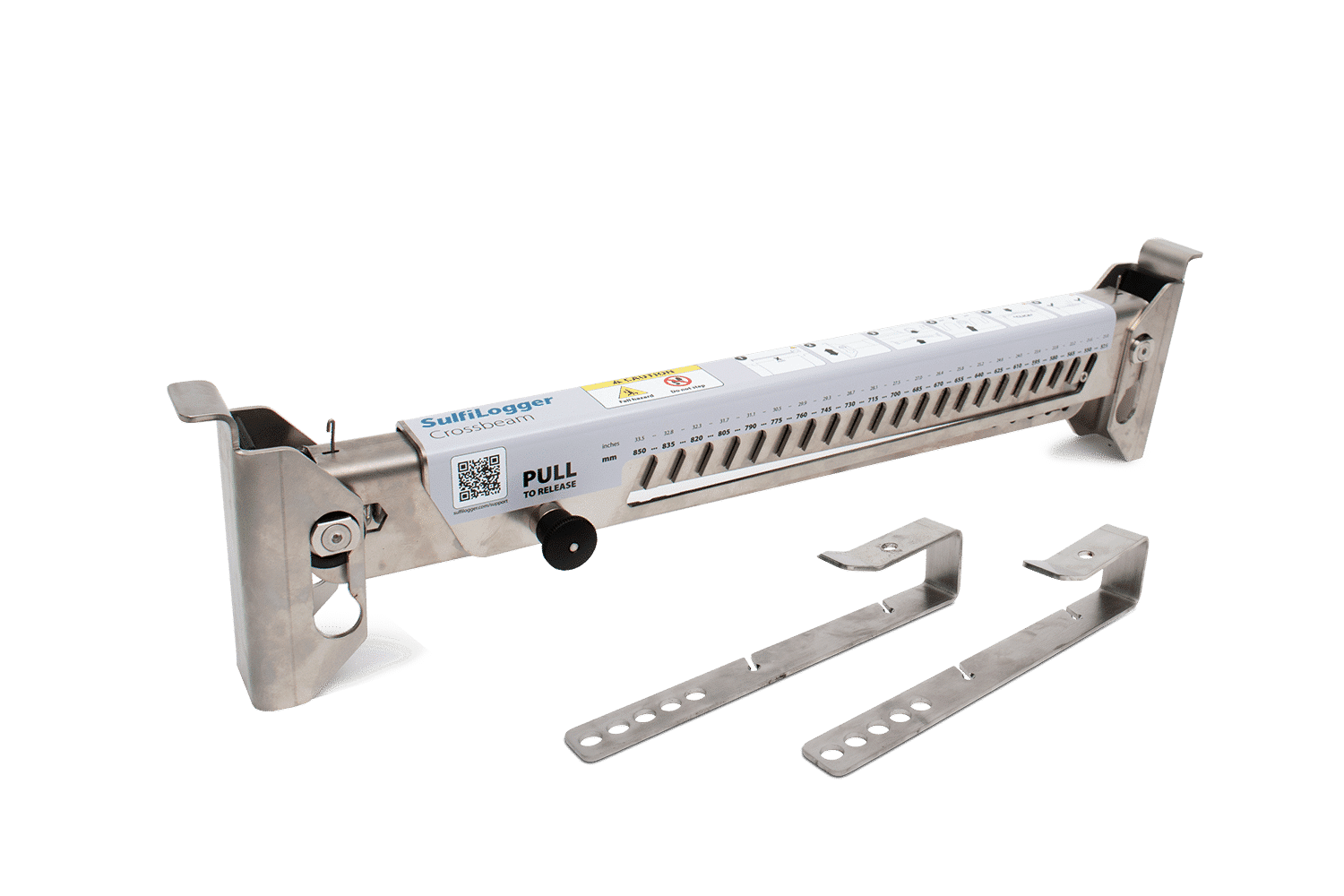

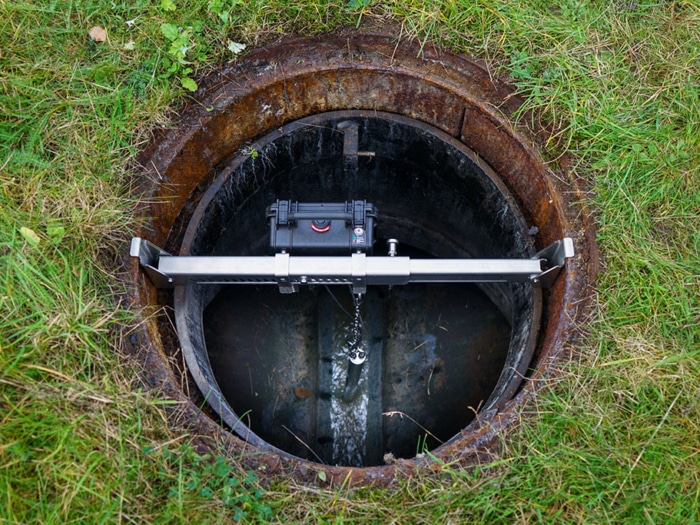

Adjustable beam that provides a sturdy anchor point for sensor suspension in manholes with various designs. A set of PowerCom Box mounting clamps is included.

Technical specifications

Min. manhole diameter 558 mm (22.0 in)
Max. manhole diameter 858 mm (33.8 in)
Max. cover insertion depth 68 mm (2.7 in)
Dimensions (l x h x w) 558-858 mm x 136 mm x 71 mm
(22.0-33.8 in x 5.4 in x  2.8 in)
Weight 3.4 kg (7.5 lb)
Material Stainless steel (EN 1.4404)
